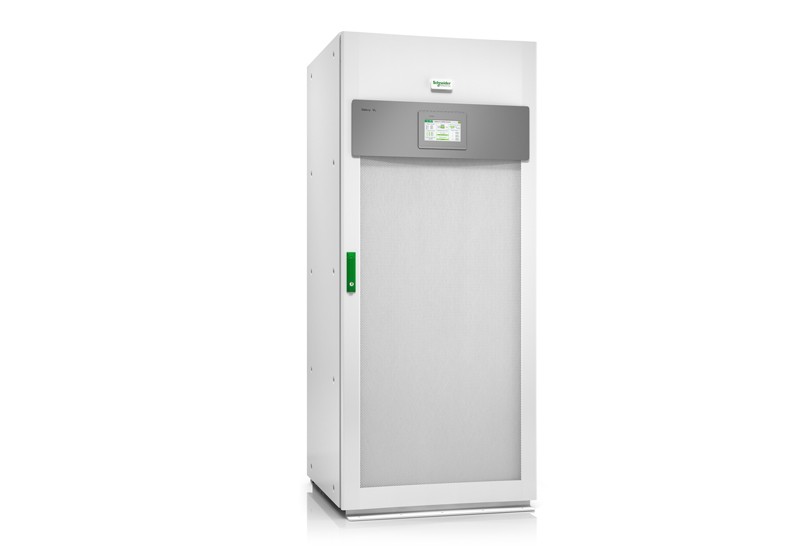

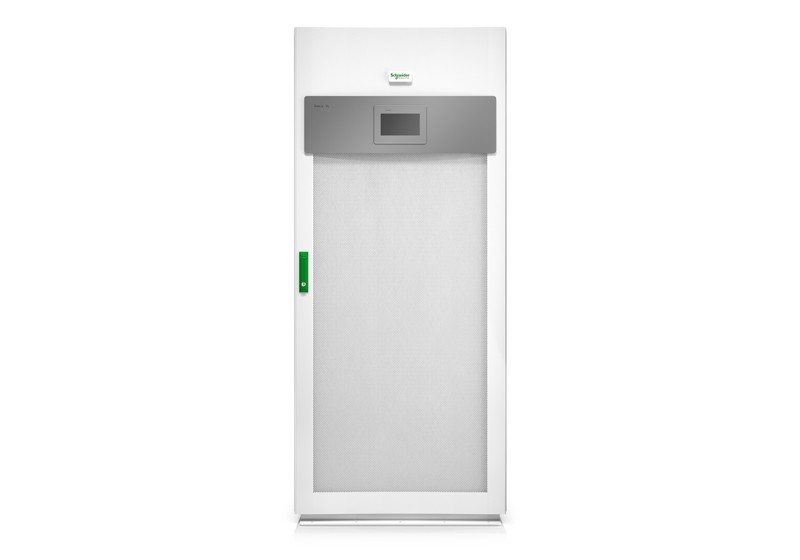

Galaxy VL UPS GVL200K500DS
Galaxy VL 是高效节能、结构紧凑、模块化且可扩展的200-500 kW(400V/480V)三相不间断电源(UPS),可为全球范围内的中大型和边缘数据中心,以及商业和工业设施提供高性能的电力保障
Galaxy VL 是高效节能、结构紧凑、模块化且可扩展的200-500 kW(400V/480V)三相不间断电源(UPS),可为全球范围内的中大型和边缘数据中心,以及商业和工业设施提供高性能的电力保障
外观 | Highly efficient, modular, high-density 200kW (400/480V) 3-phase UPS that is scalable up to 500kW. It delivers top performance for medium, large, and edge data centers, as well as critical infrastructure in commercial and industrial applications. Includes 5x8 start-up service. |
---|---|
交期 | 特别订单 -- 需要提供交付周期 |
Main Input Voltage | 380 V 3 相 400 V 3 相 415 V 3 相 440 V 3 相 480 V 3 相 |
---|---|
Main Output Voltage | 380 V 3 相 400 V 3 相 415 V 3 相 440 V 3 相 480 V 3 相 |
Other Output Voltage | 400 V 480 V |
额定功率 [W] | 200 kW |
额定功率 [VA] | 200 kVA |
电池类型 | Li-Ion (锂离子) VRLA Ni-Cd (Nickel-Cadmium) |
Number of power module | 4 |
---|---|
Number of power module free slots | 6 |
Redundant | Yes |
颜色 | 白色 |
---|---|
高度 | 197 cm |
宽度 | 85 cm |
深度 | 92.5 cm |
产品净重 | 550 kg |
网络频率 | 40...70 Hz |
---|---|
最大耐受短路电流 (Icw) | 65 kA |
输入总谐波失真 | 少于5%的满负荷 |
Load power factor | 0.5领先到0.5滞后,无降容条件下 |
最大可配置功率(瓦) | 500 kW |
---|---|
波峰系数 | 2.5 |
输出电压 THD | < 1% linear load and < 5% non-linear load |
过载工作 | 125% 时为 10 分钟,150% 时为 60 秒 |
Maximum configurable power in VA | 500 kVA |
产品认证 | IEC 62040-1-1 UL 1778 5th edition IEC 62040-2 IEC 62040-3 VFI-SS-111 FCC B 类 ENERGY STAR V2.0 (USA) |
---|---|
符合标准 | IEC 60721-4-2等级2M2 |
运行温度 | 0…40 °C |
---|---|
相对湿度 | 0…95 % 非凝结 |
工作海拔 | 0...3000 m |
贮存环境温度 | -25…55 °C |
存储相对湿度 | 10…80 % 非凝结 |
IP 保护等级 | IP20 |
效率 | View Efficiency Graph |
---|---|
电池电压放电结束 | 384 V |
控制面板 | 触摸液晶屏用户界面 |
---|---|
有声报警 | Audible and visible alarms prioritized by severity |
Unit Type of Package 1 | PCE |
---|---|
Number of Units in Package 1 | 1 |
Package 1 Height | 2145 mm |
Package 1 Width | 1100 mm |
Package 1 Length | 950 mm |
Package 1 Weight | 620 kg |
保修单 | 1 year on-site repair or replace with factory authorized Start-Up |
---|
